Grids

Querying Grids

In Revit API, Grids of all types are represented by the DB.Grid. The Grid primitive in Rhino.Inside.Revit represents a Grid.

Pick Existing Grid

The Query Grids component provides a list of all the Grids in the project. These can be refined using the Name, Elevation or Filter inputs.

You can also use the Grid Parameter to choose an existing grid. Right-click the Grid primitive gives access to various Grid functions.

Querying Grid Types

See Modifying Types for getting Grid Type Information.

Analyzing Grids

Extract Grid Curve

Passing a Grid, to a Grasshopper Curve component, will extract the curve of that grid:

Creating Grids

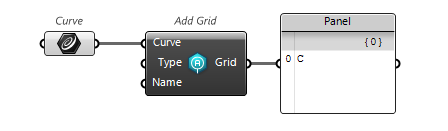

The Component Add Grid+ v1.0 requires a Line or Arc, Type & Name inputs are optional.
