Download Sample Files

Files

• RAC_basic_sample_project.rvt Standard Revit Template file is used on this example
• write-sheet-param-humanui.gh Grasshopper definition for this example

Description

The example here requires the HumanUI plugin for Grasshopper. This is a plugin allowing Grasshopper to design and display dialog box interfaces. In this case the dialog interface will help edit the Drawn by and the Checked by sections of the title block.

1. Open the A001 - Title Sheet * in the standard RAC_basic_sample_project.rvt.
2. In the Rhinoceros Toolbar in Revit, select the Rhino Player icon
3. Open the write-sheet-param-humanui.gh

This definition will run the Human UI dialog immediately without showing Grasshopper.

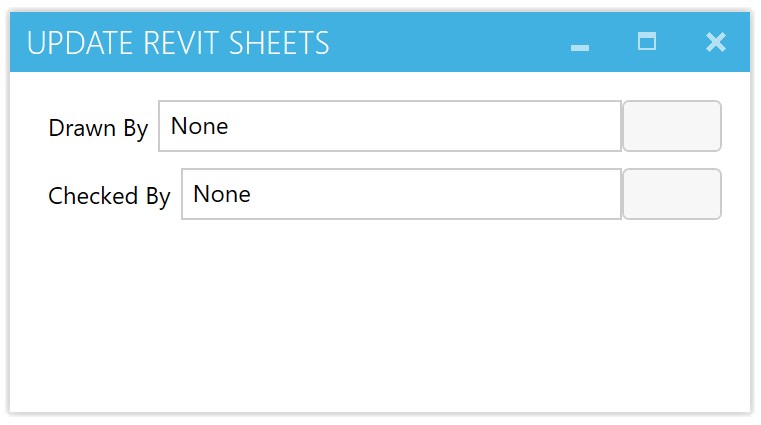

Simply edit the Text filed and click on the update buttons to the right. The Titleblock will change. To see how the definition works, just open the Grasshopper canvas and open the script.
